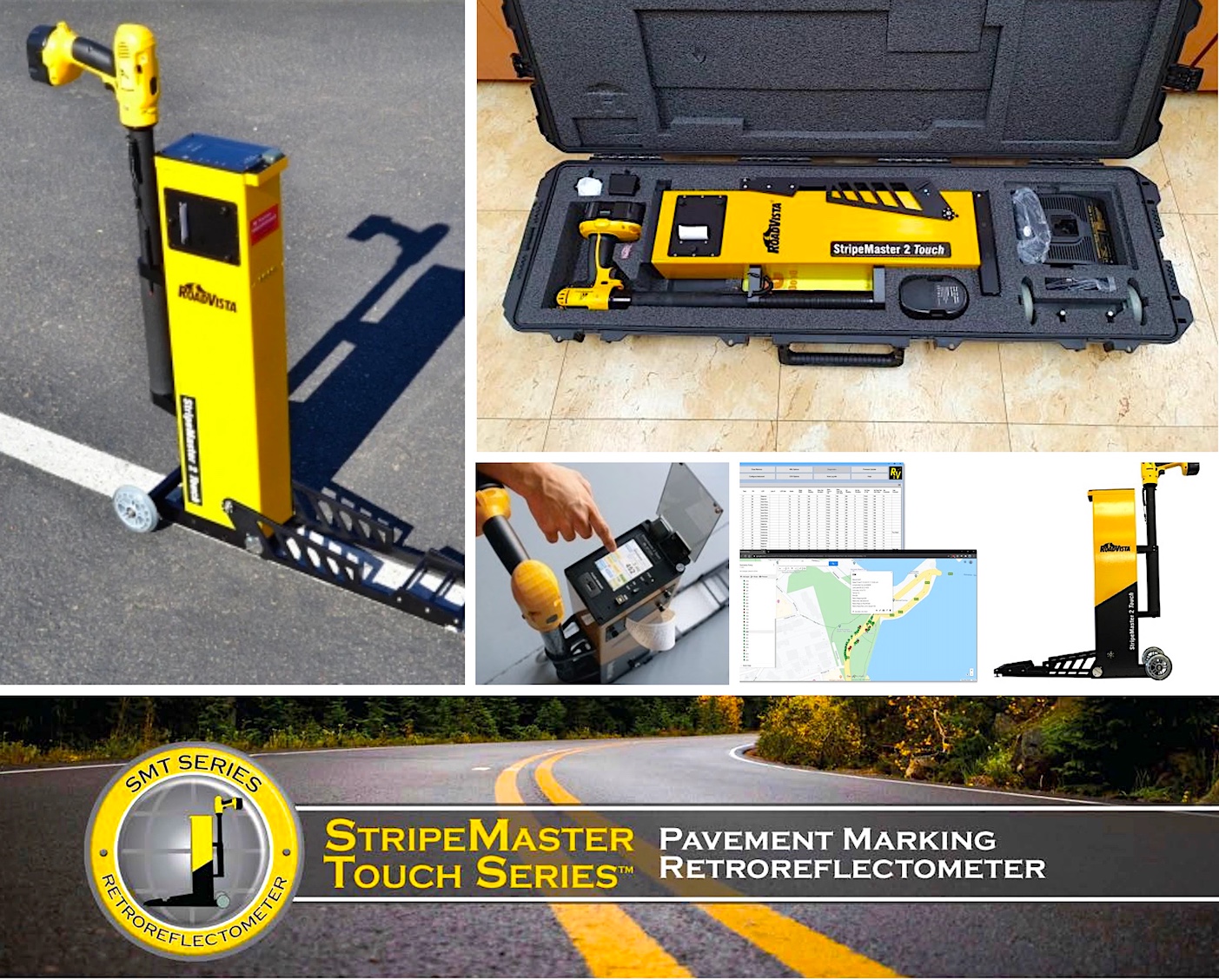

Pavement Marking Retroreflectometer

Designed for use in the field, this device measures the retroreflectivity of glass beads embedded in white or yellow thermoplastic, traffic paint, or temporary marking materials. It is a highly reliable, field-proven tool for safe and consistent asset management with minimal operator training.

Through a simple place, shoot, read, and record process, the system provides an all-in-one pavement marking asset management system.

An intuitive, touch-screen interface leads to faster measurement times and the retroreflectometer features easy data export for comprehensive documentation and tracking. Uploading collected data to a computer is easy with USB or Bluetooth connectivity.

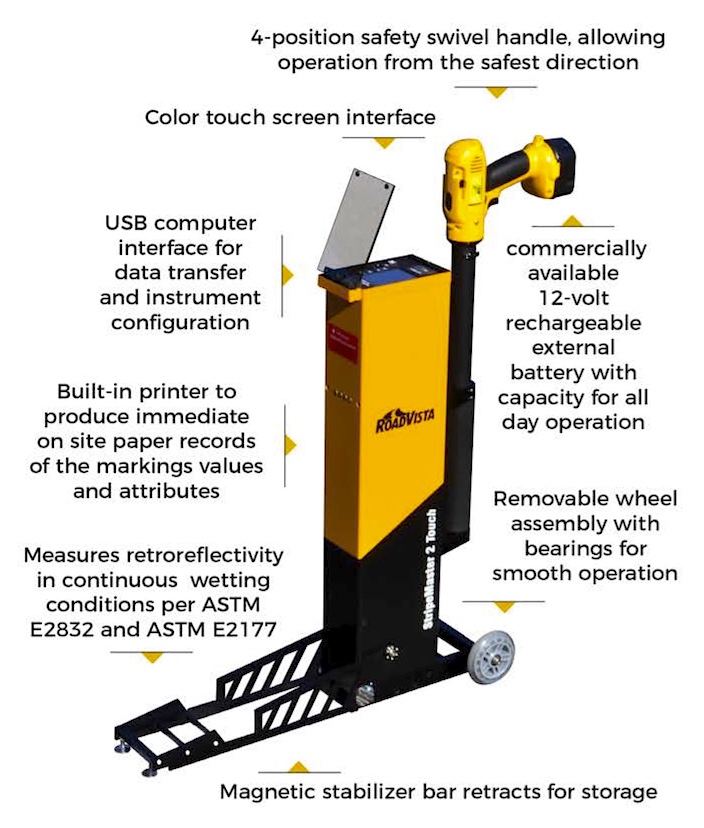

Features

• ASTM E1710 and EN 1436 compliant
• Repeatability within +/-2%, reproducibility +/- 5%
• East to use touch screen interface w/ built-in printer
• Standard USB/wireless Bluetooth computer interface
• Generate customized reports based on your data collection
• Measures retroreflectivity of white & yellow pavement markings
• User customized data fields: road location, installation date, material, etc.
• 25,000 data point storage with removable flash drive for easy data transfer
• Measures flat & profiled markings up to 15mm on dry, wet, or rainy surfaces

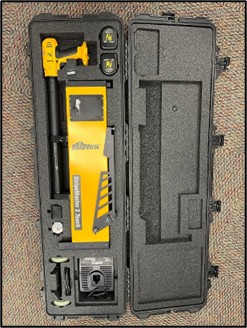

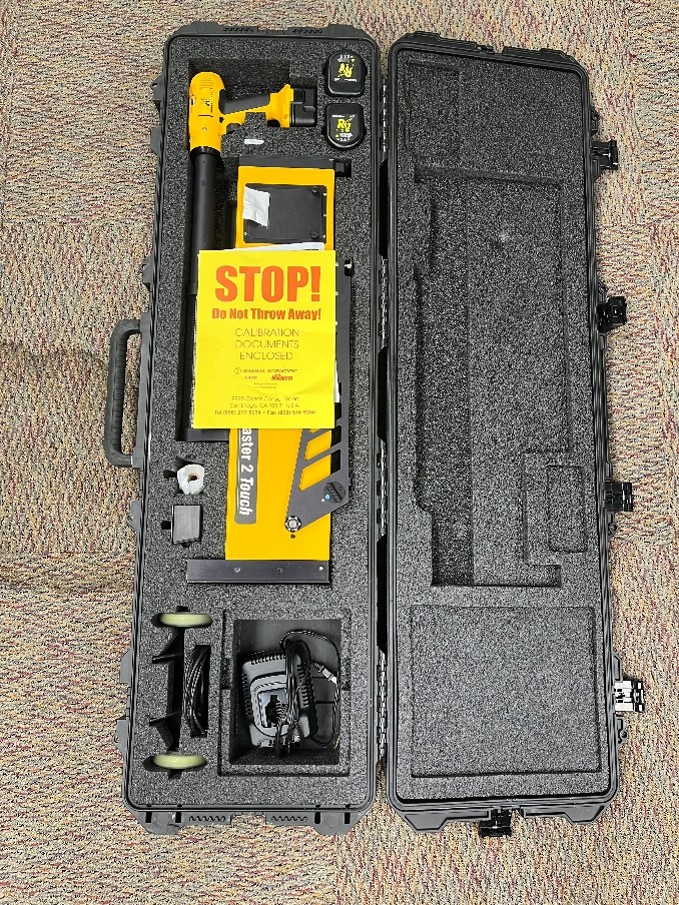

• Commercially available 12V battery w/ charger; rigid foam-lined carrying case
